Precise, Powerful and Easy to Use
Choose one, two, three or more linear or rotation stages and seamlessly create your multi axis system. Plug the stage cable connectors into the PRECIBEO GO Controller and you are ready to GO!
GO XY Stages

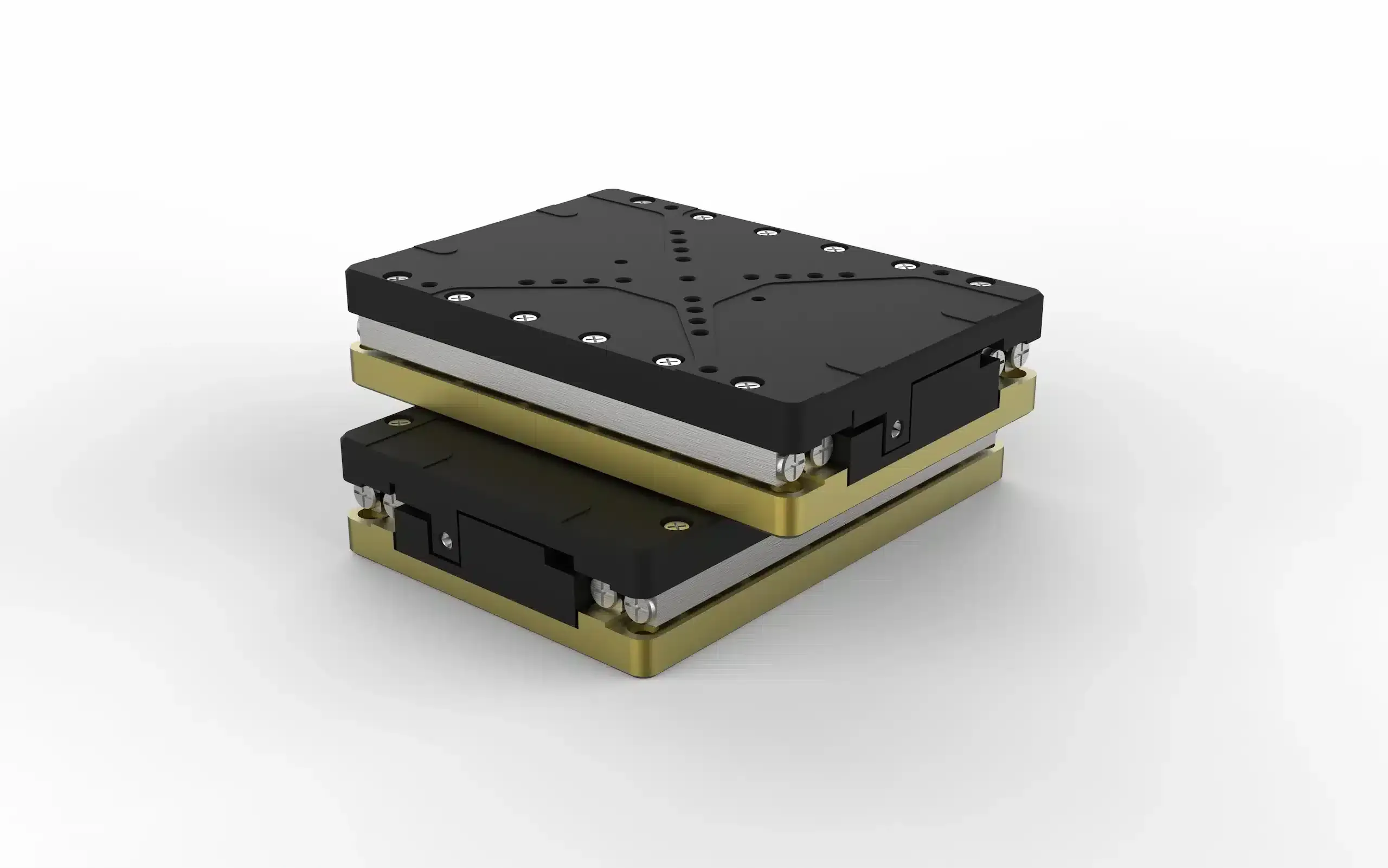

GO XY – LS6545
Two PRECIBEO GO Linear Stages LS6545 assembled into a XY Stage enable nanometer precision motion along the X and Y axis, each with 35 mm travel range.

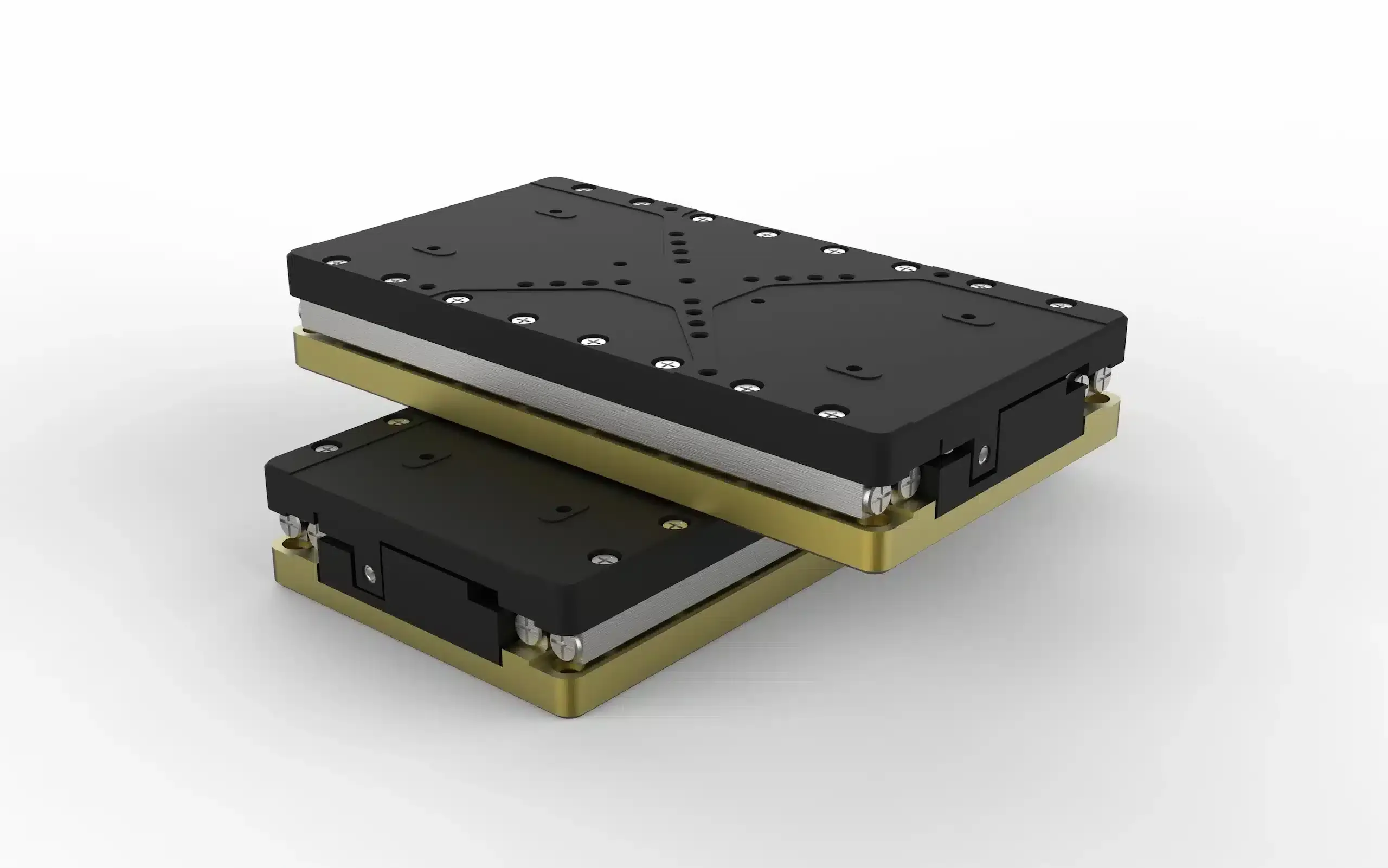

GO XY – LS8545
Two PRECIBEO GO Linear Stages LS8545 assembled into a XY Stage enable nanometer precision motion along the X and Y axis, each with 50 mm travel range.

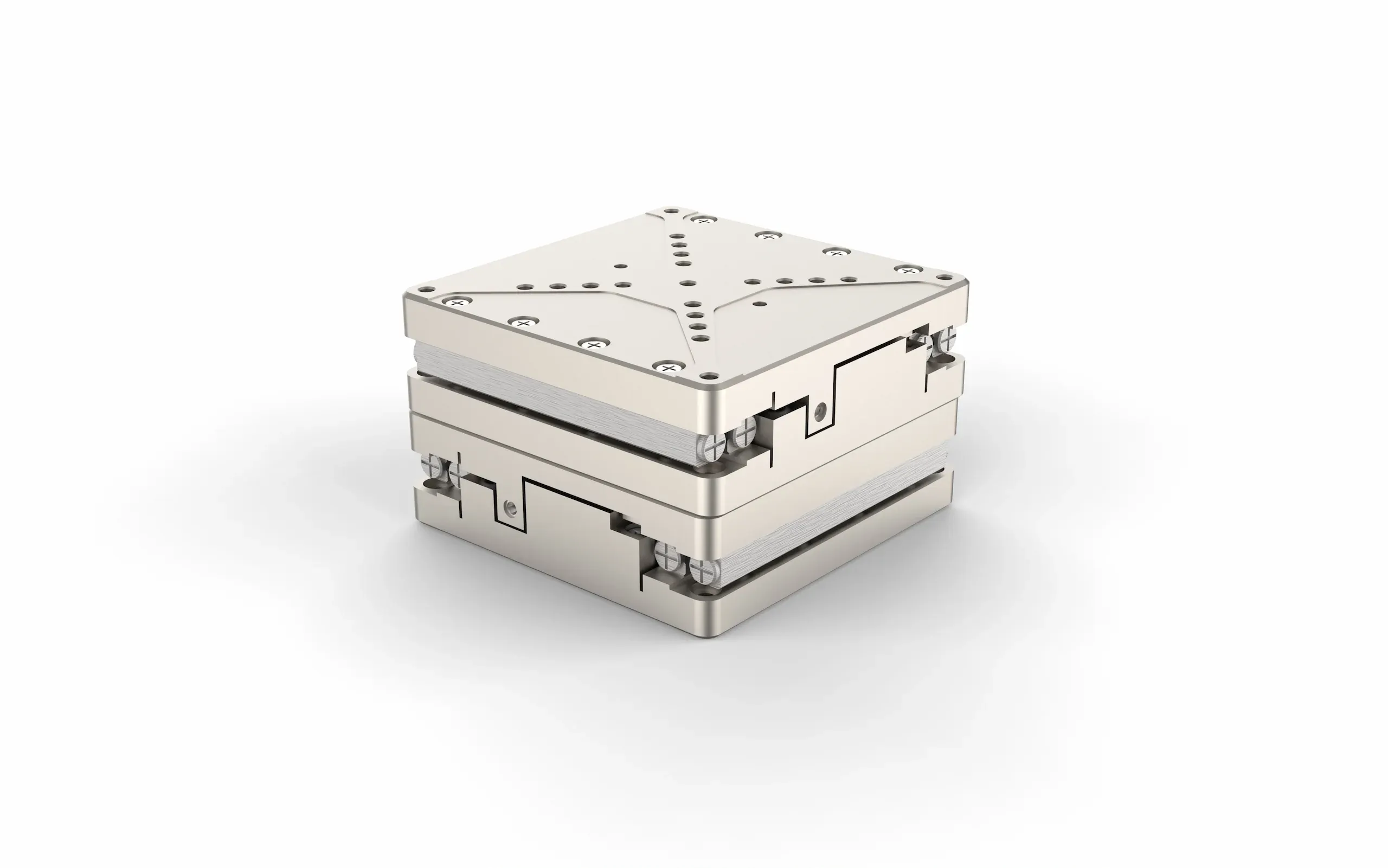

GO XY – LS4545 HV
Two PRECIBEO GO Linear Stages LS4545 HV assembled into a XY Stage enable nanometer precision motion along the X and Y axis, each with 20 mm travel range, in down to 10-4 Pa vacuum.

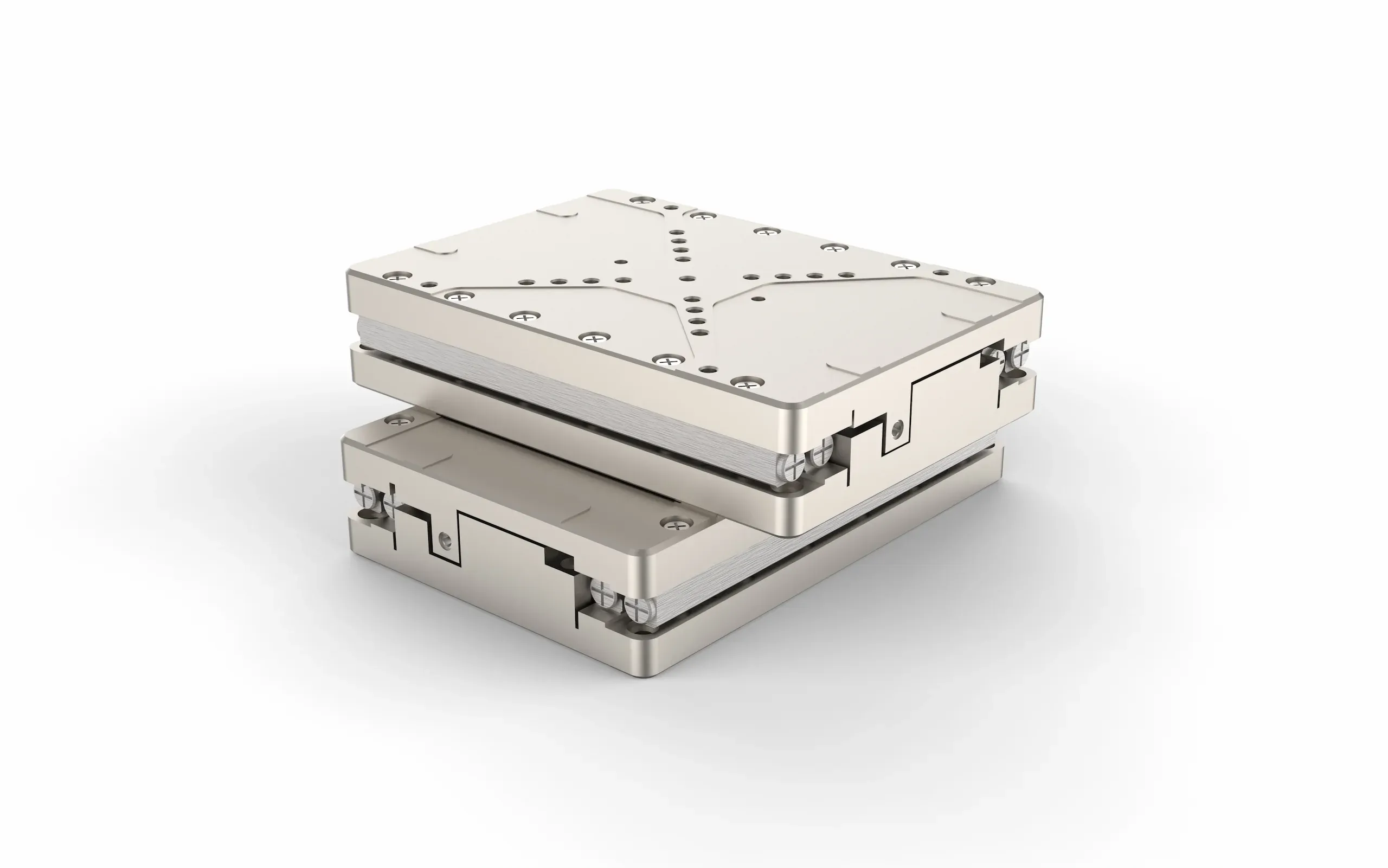

GO XY – LS6545 HV
Two PRECIBEO GO Linear Stages LS6545 HV assembled into a XY Stage enable nanometer precision motion along the X and Y axis, each with 35 mm travel range, in down to 10-4 Pa vacuum.

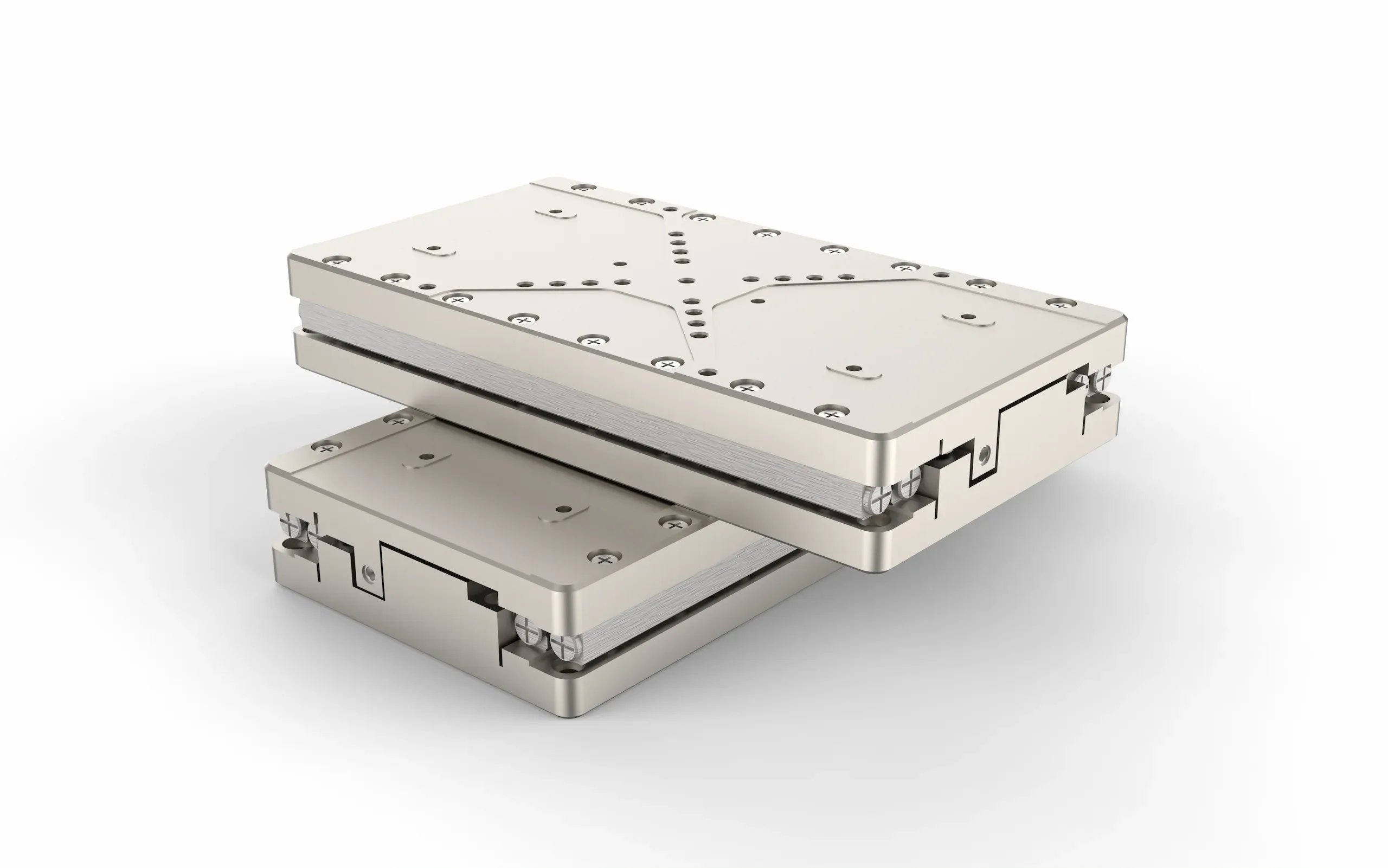

GO XY – LS8545 HV
Two PRECIBEO GO Linear Stages LS8545 HV assembled into a XY Stage enable nanometer precision motion along the X and Y axis, each with 50 mm travel range, in down to 10-4 Pa vacuum.GO XYZ Stages
GO XYZ – LS4545
Three PRECIBEO GO Linear Stages LS4545 assembled into a XYZ Stage enable nanometer precision motion along the X, Y and Z axis, each with 20 mm travel range.

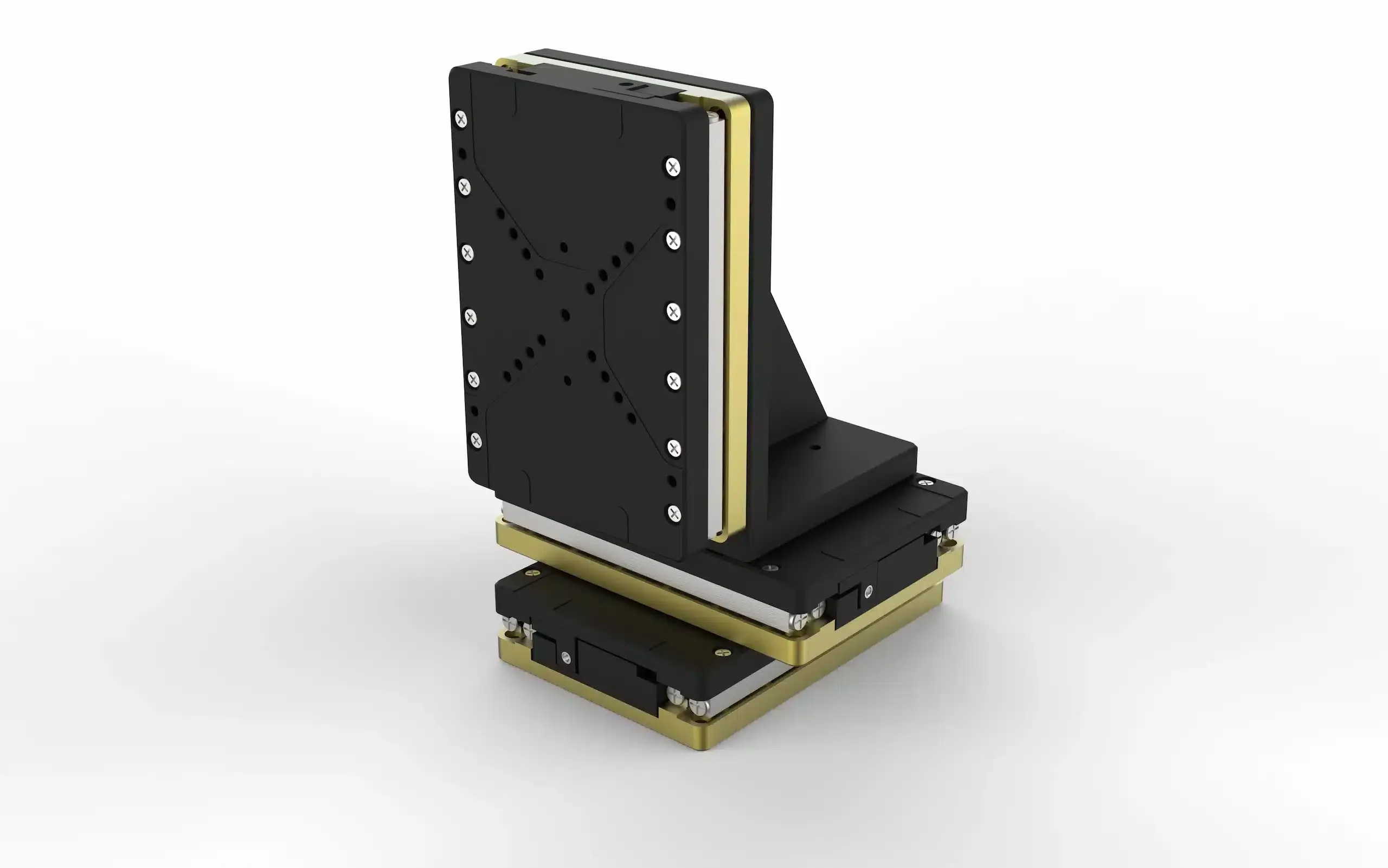

GO XYZ – LS6545
Three PRECIBEO GO Linear Stages LS6545 assembled into a XYZ Stage enable nanometer precision motion along the X, Y and Z axis, each with 35 mm travel range. Also available in a High Vacuum version for vacuum down to 10-4 Pa.

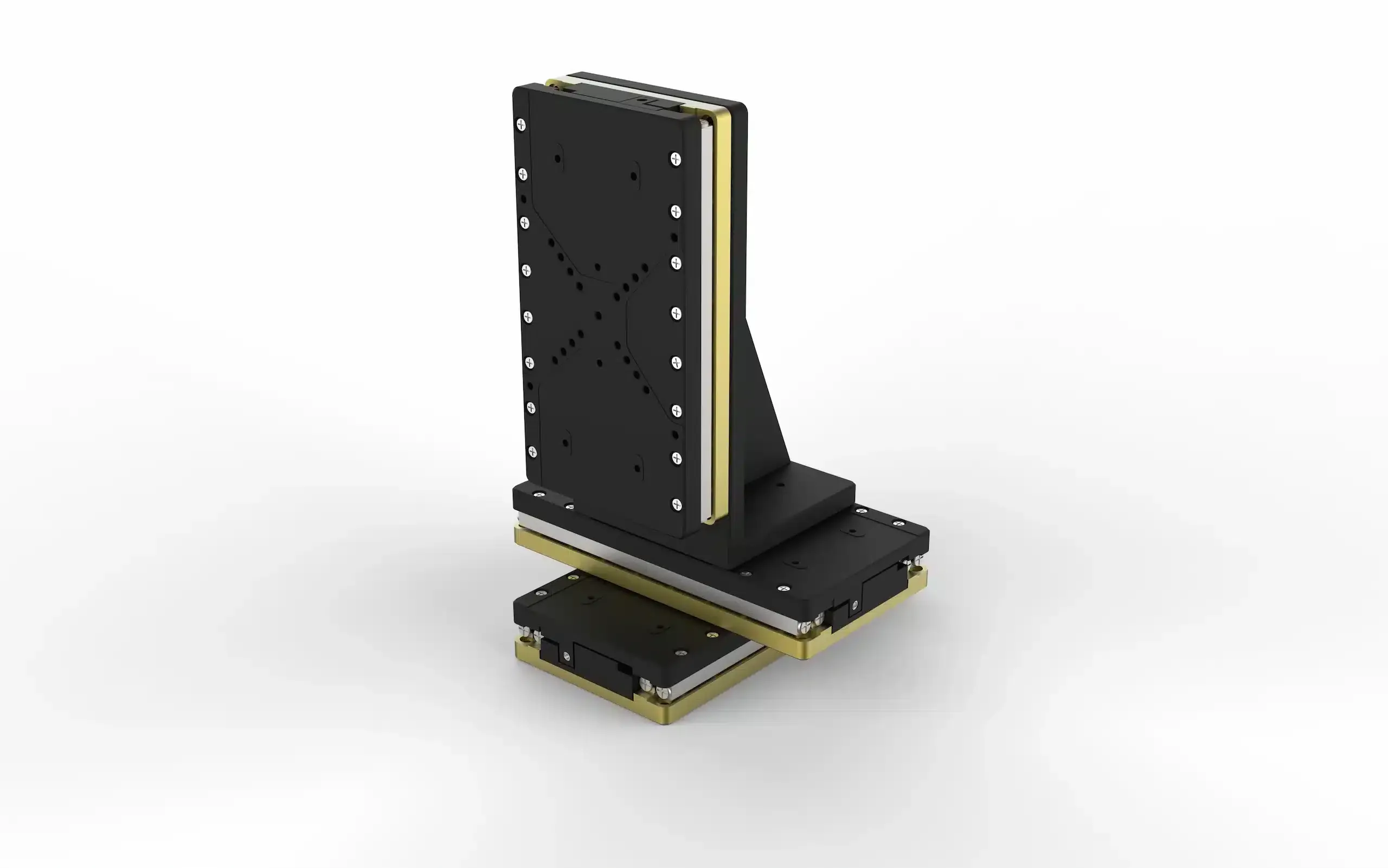

GO XYZ – LS8545
Three PRECIBEO GO Linear Stages LS8545 assembled into a XYZ Stage enable nanometer precision motion along the X, Y and Z axis, each with 50 mm travel range. Also available in a High Vacuum version for vacuum down to 10-4 Pa.

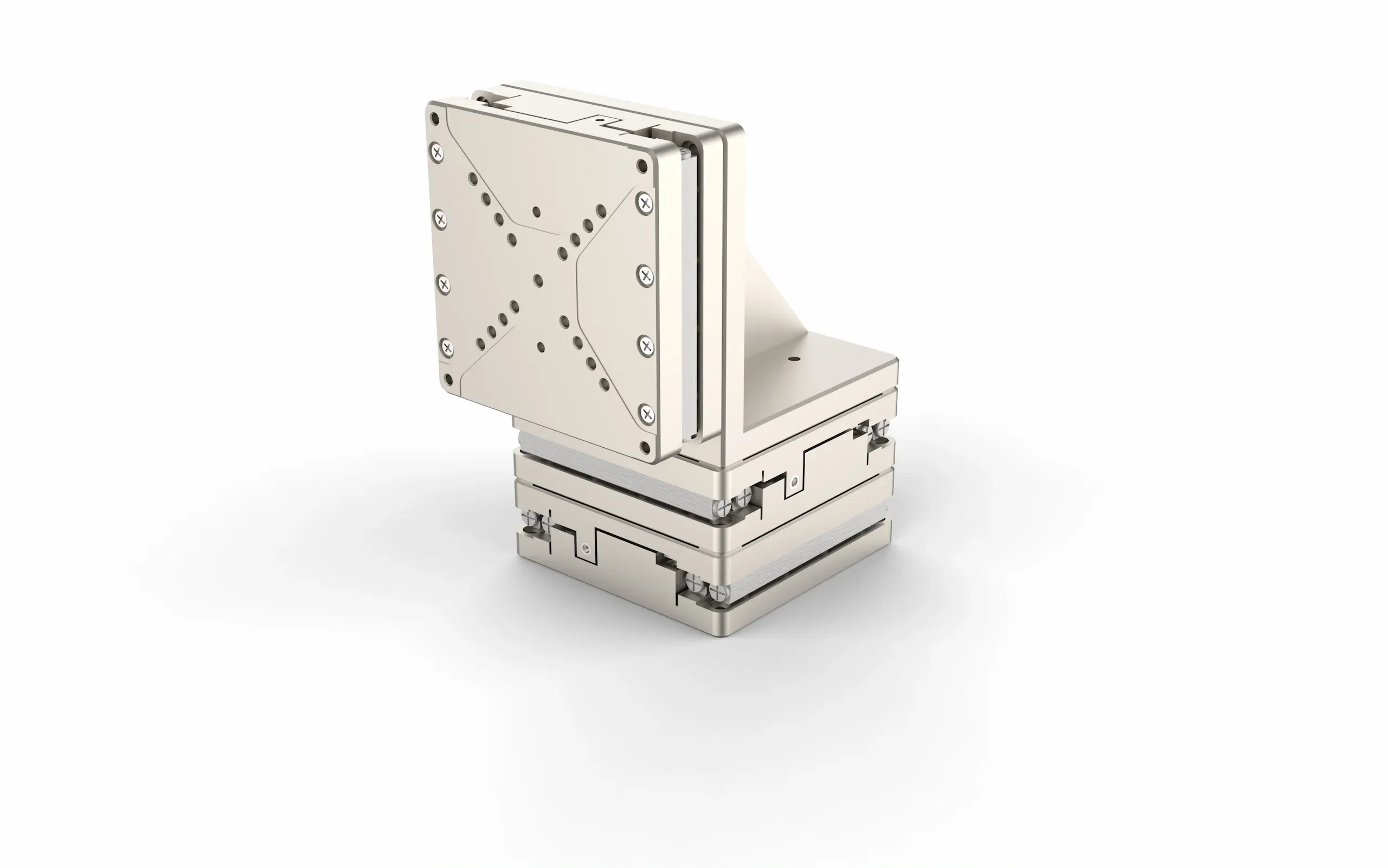

GO XYZ – LS4545 HV
Three PRECIBEO GO Linear Stages LS4545 assembled into a XYZ Stage enable nanometer precision motion along the X, Y and Z axis, each with 20 mm travel range, in down to 10-4 Pa vacuum.
GO XYZ – LS4545 & Elevation
Two PRECIBEO GO Linear Stages LS4545 and one GO Elevation Stage assembled into a XYZ Stage enable nanometer precision motion along the X, Y and Z axis, with 20 mm travel along X and Y, and 10 mm travel along Z.

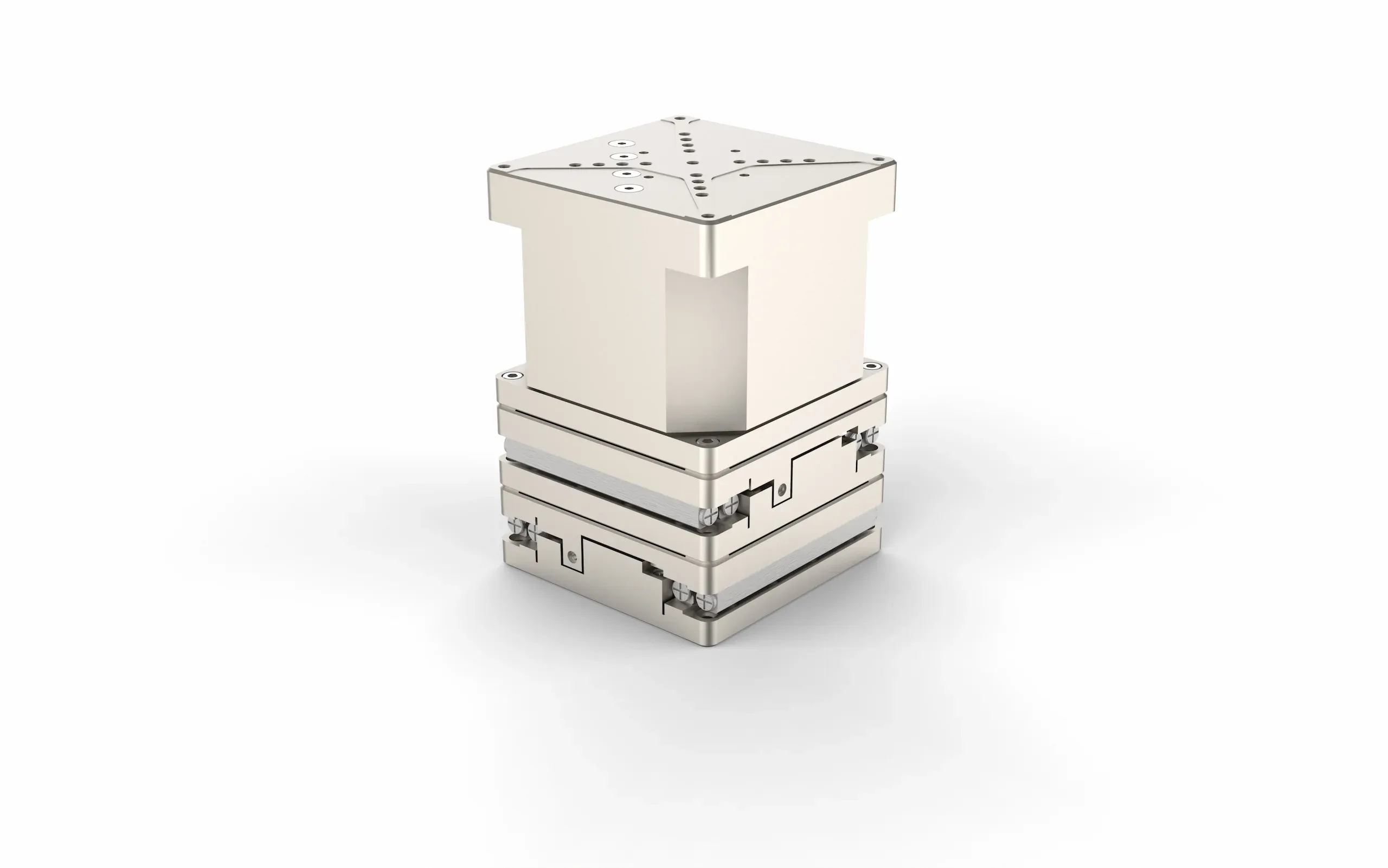

GO XYZ – LS4545 & Elevation HV
Two PRECIBEO GO Linear Stages LS4545 HV and one GO Elevation Stage HV assembled into a XYZ stage enable nanometer precision motion along the X, Y and Z axis, with 20 mm travel along X and Y, and 10 mm travel along Z, in down to 10-4 Pa vacuum.Linear and Rotation Stages Combined
GO XYΘ(Z) – LS4545 & RS4545
Two PRECIBEO GO Linear Stage LS4545 and one GO Rotation Stage RS4545 enables nanometer precision motion along the X and Y axes, and unlimited microdegree precision motion around the Z axis.

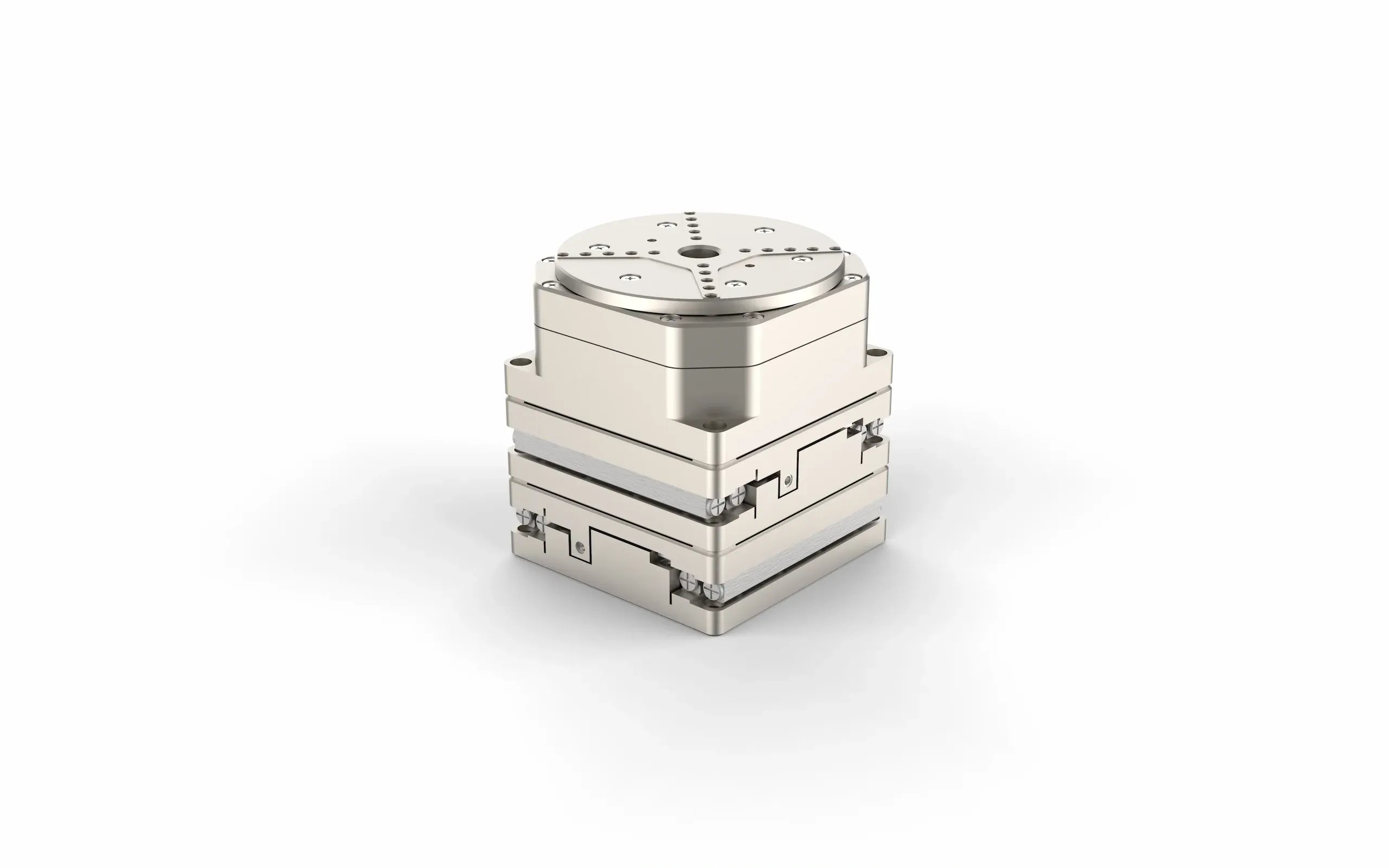

GO XYΘ(Z) – LS4545 & RS4545 HV
Two PRECIBEO GO Linear Stage LS4545 HV and one GO Rotation Stage RS4545 HV enables nanometer precision motion along the X and Y axes, and unlimited microdegree precision motion around the Z axis, in down to 10-4 Pa vacuum.
GO XYZΘ(Z) – LS4545, Elevation & RS4545
Two PRECIBEO GO Linear Stage LS4545, one GO Elevation Stage and one GO Rotation Stage RS4545 enables nanometer precision motion along the X, Y and Z axes, and unlimited microdegree precision motion around the Z axis.Accessories for Multistage Assemblies
PRECIBEO GO mounting brackets enable secure mounting of the linear stages for vertical motion and for the linear stages to be mounted on top of rotation stages. Mount the stages using the brackets to create your multistage assembly and you are ready to GO!

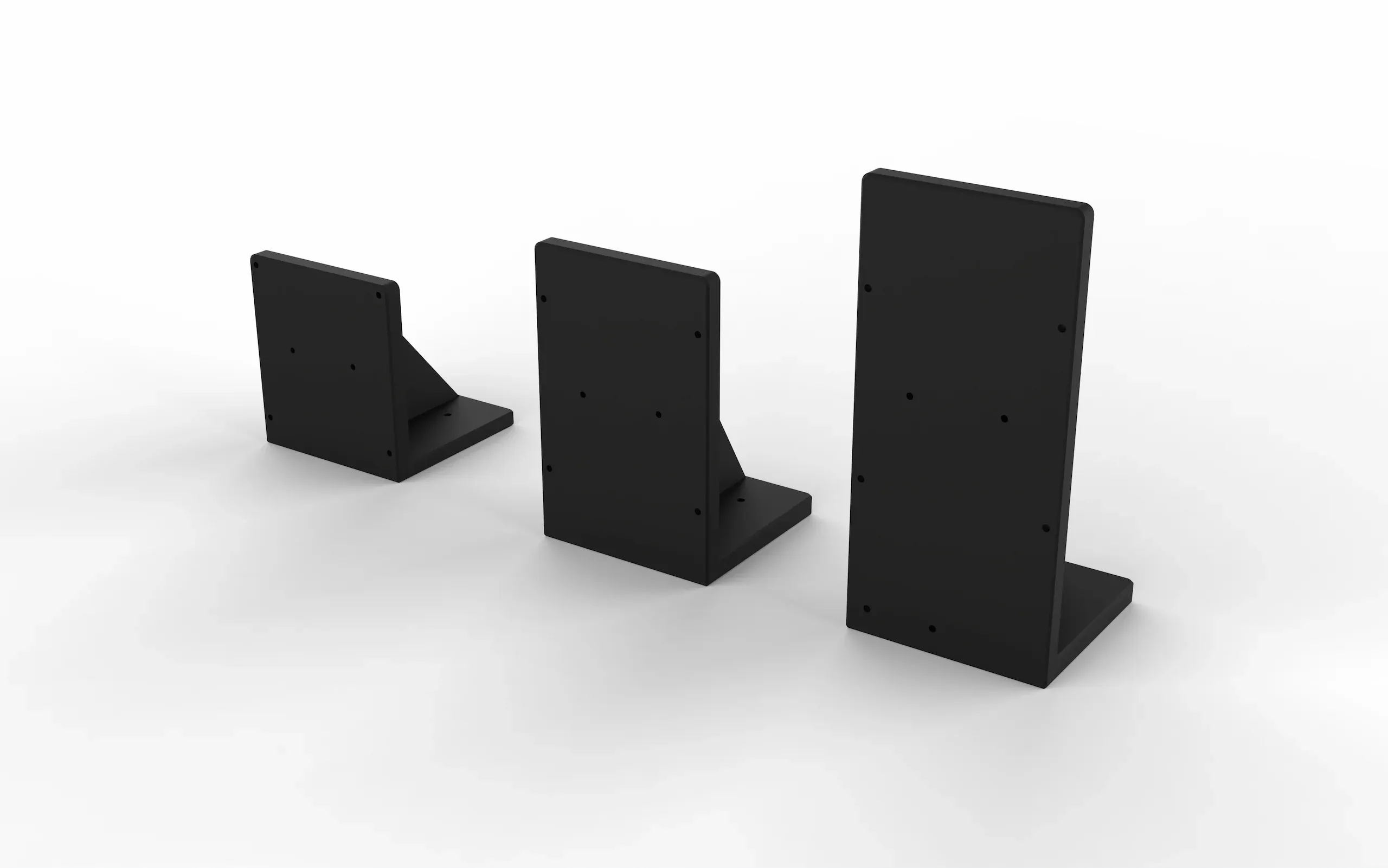

GO Vertical Mount
The PRECIBEO GO Vertical Mounts enable a Linear Stage to be mounted on top of other stages in a vertical direction, e.g. to create a XYZ stage.

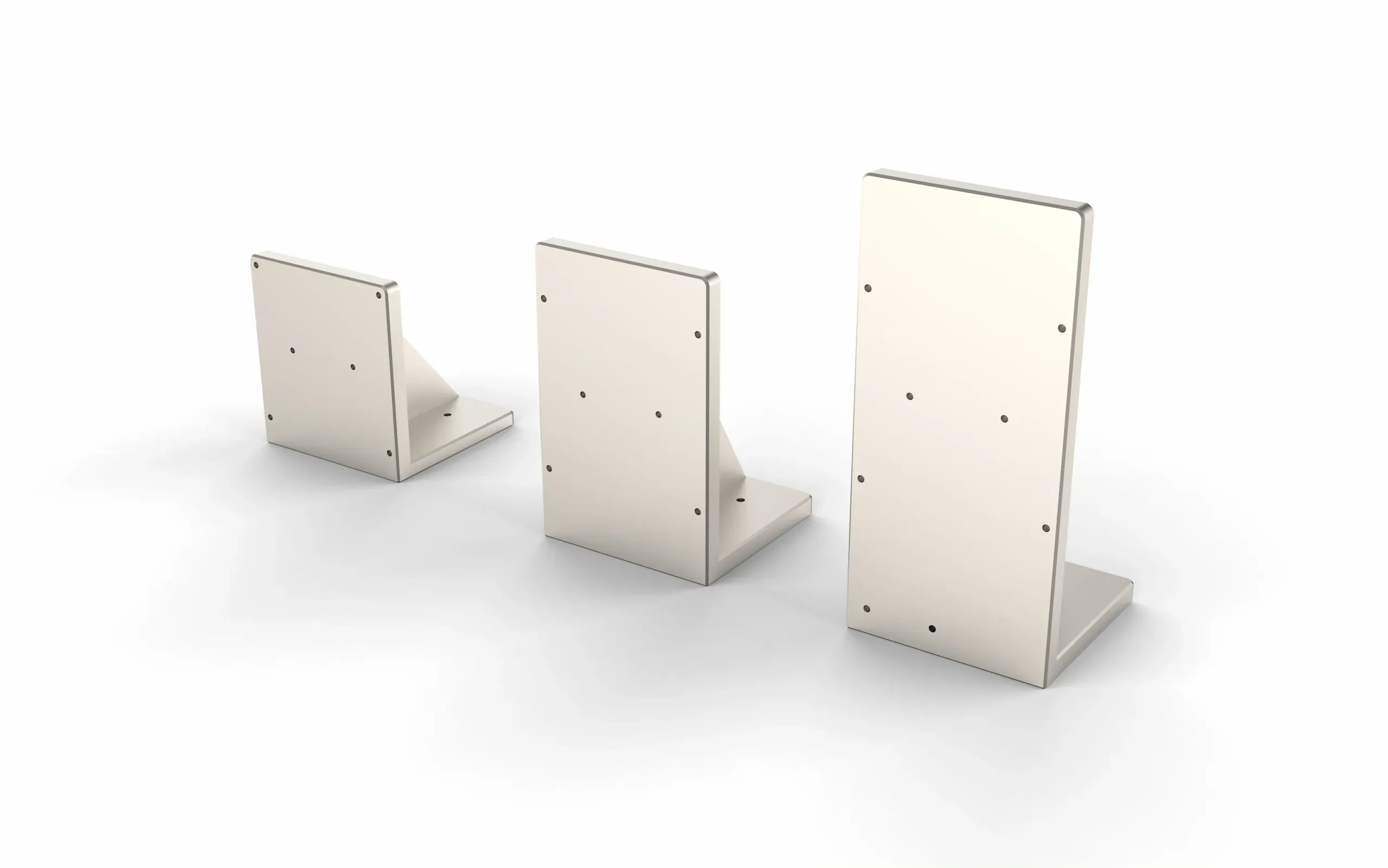

GO Vertical Mount HV
The PRECIBEO GO Vertical Mounts HV enable a Linear Stage to be mounted on top of another stage in a vertical direction, e.g. to create a XYZ stage, in vacuum down to 10-4 Pa.
